Which Disk is that volume on?

I administer a server VM with a lot of disks, and many of them are the same size. When I need to make changes to the system’s storage, I’m always nervous that I’m going to poke the wrong disk. I could trust that the order of the disks listed in the vSphere client is the same as the order that the guest OS lists (starting at 1 and 0 respectively). But I want a little more assurance.

Using diskpart, you can list the details for individual disks, partitions and volumes, but I wanted a report showing all the disks, the partitions on those disks, and the volumes residing on those partitions. I have reported some of this info previously, using PowerShell’s Get-WMIObject cmdlet to query the Win32_DiskDrive, Win32_Partition, and Win32_Volume classes. I figured there must me a way to correlate instances of these classes.

I found these two blog posts:

They did most of the heavy lifting in building the WQL ASSOCIATOR OF queries. I put together a short script to give me a little more detail. Here’s some sample output:

PS C:localscripts> .Get-DiskInfo.ps1
Disk 0 - SCSI 0:0:2:0 - 45.00 GB
    Partition 0  100.00 MB  Installable File System
    Partition 1  44.90 GB  Installable File System
        C: [NTFS] 44.90 GB ( 3.46 GB free )
[...]
Disk 5 - SCSI 0:0:2:5 - 39.99 GB
    Partition 0  40.00 GB  Installable File System
        B: [NTFS] 40.00 GB ( 34.54 GB free )

This will make it easier to be sure about the vSphere storage element that corresponds to a particular volume (or, more accurately, the Physical Disk on which the volume resides).

Here’s the actual script:

 .Get-DiskInfo.ps1

.NOTES
    Author: Geoff Duke
    Based on http://bit.ly/XowLns and http://bit.ly/XeIqFh
#>

Set-PSDebug -Strict

Function Main {

    $diskdrives = get-wmiobject Win32_DiskDrive | sort Index

    $colSize = @{Name='Size';Expression={Get-HRSize $_.Size}}

    foreach ( $disk in $diskdrives ) {

        $scsi_details = 'SCSI ' + $disk.SCSIBus         + ':' +
                                  $disk.SCSILogicalUnit + ':' +
                                  $disk.SCSIPort        + ':' +
                                  $disk.SCSITargetID
        write $( 'Disk ' + $disk.Index + ' - ' + $scsi_details +
                 ' - ' + ( Get-HRSize $disk.size) )

        $part_query = 'ASSOCIATORS OF {Win32_DiskDrive.DeviceID="' +
                      $disk.DeviceID.replace('','\') +
                      '"} WHERE AssocClass=Win32_DiskDriveToDiskPartition'

        $partitions = @( get-wmiobject -query $part_query |
                         sort StartingOffset )
        foreach ($partition in $partitions) {

            $vol_query = 'ASSOCIATORS OF {Win32_DiskPartition.DeviceID="' +
                         $partition.DeviceID +
                         '"} WHERE AssocClass=Win32_LogicalDiskToPartition'
            $volumes   = @(get-wmiobject -query $vol_query)

            write $( '    Partition ' + $partition.Index + '  ' +
                     ( Get-HRSize $partition.Size) + '  ' +
                     $partition.Type
                   )

            foreach ( $volume in $volumes) {
                write $( '        ' + $volume.name +
                         ' [' + $volume.FileSystem + '] ' +
                         ( Get-HRSize $volume.Size ) + ' ( ' +
                         ( Get-HRSize $volume.FreeSpace ) + ' free )'
                       )

            } # end foreach vol

        } # end foreach part

        write ''

    } # end foreach disk

}

#--------------------------------------------------------------------
function Get-HRSize {
    [CmdletBinding()]
    param(
        [Parameter(Mandatory=$True, ValueFromPipeline=$True)]
        [INT64] $bytes
    )
    process {
        if     ( $bytes -gt 1pb ) { "{0:N2} PB" -f ($bytes / 1pb) }
        elseif ( $bytes -gt 1tb ) { "{0:N2} TB" -f ($bytes / 1tb) }
        elseif ( $bytes -gt 1gb ) { "{0:N2} GB" -f ($bytes / 1gb) }
        elseif ( $bytes -gt 1mb ) { "{0:N2} MB" -f ($bytes / 1mb) }
        elseif ( $bytes -gt 1kb ) { "{0:N2} KB" -f ($bytes / 1kb) }
        else   { "{0:N} Bytes" -f $bytes }
    }
} # End Function:Get-HRSize

Main

Please let me know if you find this helpful.

GUID Chase – Group Policy troubleshooting

It started with an alert from System Center Operations Manager about a failed scheduled task. Of course, the alert references a task name that looks like a SID.  Running schtasks /query show a few jobs with a status that warranted inspection. Looking at the Microsoft-Windows-TaskScheduler/Operational log I found that the task “MicrosoftWindowsCertificateServicesClientUserTask” is the one the failed and triggered the alert.

I also noted that there were some Group Policy processing errors occurring at about the same time as the task failure, including a problem applying the Group Policy Scheduled Tasks settings. And the failing task starts at user login.

Next, I ran gpresult /h to create a report of the GPOs and settings that applied, and any errors that were generated. The report confirmed that there were failures in applying the Group Policy Files settings and the Group Policy Scheduled Tasks settings.

Some web searching turned up this thread, among others, which pointed me to the Group Policy History files in C:UsersAll UsersMicrosoftGroup PolicyHistory. This directory contained four subdirectories named with the GUIDs for the corresponding GPOs. I was able to find three of the four GPOs by inspecting the details in the GPMC, but I couldn’t find the fourth.

I decided to search more programmatically, and started with an LDAP search with ADFind:

adfind -f "&(objectClass=groupPolicyContainer)(Name={DC257675-89C1-5AA6-5F65-B5D5CFC35E17})"
0 Objects returned

Then, just to be sure, I used the PowerShell GroupPolicy module:

PS Z:> import-module GroupPolicy
PS Z:> get-gpo -guid "{DC257675-89C1-5AA6-5F65-B5D5CFC35E17}"
Get-GPO : A GPO with ID {DC257675-89C1-5AA6-5F65-B5D5CFC35E17} was not found in the campus.ad.uvm.edu domain.

So I removed the subdirectory with that name from the GP History directory, and retried gpupdate /force. This time, it completed successfully.

String arrays and mandatory parameters

I have been working on a function to convert the output of NET SHARE commands into usable PowerShell objects. In the course of my work, I was storing the output of the command in a variable, which I later pass into a parsing function. Curiously, the function I developed iteratively in the console worked fine, but when I dressed it up in my script, it failed:

test-array : Cannot bind argument to parameter 'foo' because it is an empty string.
At line:1 char:12
+ test-array $party
+            ~~~~~~
    + CategoryInfo          : InvalidData: (:) [test-array], ParameterBindingValidationException
    + FullyQualifiedErrorId : ParameterArgumentValidationErrorEmptyStringNotAllowed,test-array

I had verified that the variable was of type System.Array, and that it had string elements. After banging my head on it for a while, I decided to break out the parameter handling and test it separately. I wrote a quick function to accept and process the elements of a string array:

function test-array {
param( [string[]] $foo )
    $i = 0
    foreach ( $line in $foo ) {
        write "[$i] $line"
        $i++
    }
}

Continue reading

Powershell, ACLs, and DFS-N

I’m working on some storage issues with our file services, and DFS Namespace services may the the best solution. But I will need to be able to keep the permissions on the DFS folders with targets in sync with the permissions on the target folders. I’m hoping that the new DFS-N PowerShell commands will facilitate this process. However, on my Server 2012 test system, I can’t get the help content to download for the DFSN-related cmdlets.

I did find this gem in the PowerShell Tips of the Week archive:

Windows PowerShell Tip: Working With Security Descriptors

Good stuff.

VSS diagnostics

For the past eight month, I’ve been working with EMC and Microsoft to diagnose a problem. Several time a month, during the backup of our primary Windows 2008 R2 file server, all the VSS shadow copies get deleted for the volume containing all our shared departmental directories.

This has two major effects. First, it means that our clients no longer can recover files using the Previous Versions feature of Windows. Second, it casts significant doubt on the validity of the backups performed at that time, which EMC NetWorker reports as having completed successfully.

We have been unable to find a technical solution to the shadow copy loss, so we will be reconfiguring our storage and shared directories to accommodate the limitations of NetWorker. In the meantime, I want to note a few of resources that have been helpful in diagnosing problems with VSS (it will be easier to find them here than in my pile o’ email):

Volume Shadow Copy Service (TechNet)

Volume Shadow Copy Service (MSDN)

Registry Keys and Values for Backup and Restore

How to enable the Volume Shadow Copy service’s debug tracing features in Microsoft Windows Server 2003 and Windows 2008

Using Tracing Tools with VSS

Listing parent of AD object in PowerShell

Recently, I wanted to provide a client with a list of groups that related to some work he was doing. I wanted the group names as well as their location with AD. Although I often use the ds* commands or excellent ADfind tool for this type of task, I had been working in PowerShell on another project, so I decided to use the PowerShell ActiveDirectory module.

The Get-ADGroup Cmdlet pulled out the groups easily enough, but the there wasn’t a property representing the group object’s parent, nor is there an LDAP property that I could request (AFAIK). The object’s parent is contained within the DistinguishedName (DN) property, though.

For a group with the following DN:

CN=FOO-FileServices Administrators,OU=FOO,OU=Departments,DC=uvm,...

I just need to strip off the CN. I could split the DN on commas, remove the first element, and then reassemble what’s left to get the parent. I also needed to avoid splitting on an LDAP-escaped comma where a value actually contains a comma (e.g., CN=).

PS> $dn -split '(?<![\]),'

Continue reading

Listing parent of AD object in PowerShell

Recently, I wanted to provide a client with a list of groups that related to some work he was doing. I wanted the group names as well as their location with AD. Although I often use the ds* commands or excellent ADfind tool for this type of task, I had been working in PowerShell on another project, so I decided to use the PowerShell ActiveDirectory module.

The Get-ADGroup Cmdlet pulled out the groups easily enough, but the there wasn’t a property representing the group object’s parent, nor is there an LDAP property that I could request (AFAIK). The object’s parent is contained within the DistinguishedName (DN) property, though.

Read the post at http://www.uvm.edu/~gcd/2012/07/listing-parent-of-ad-object-in-powershell/

HoW PGP Whole Disk Encryption Works

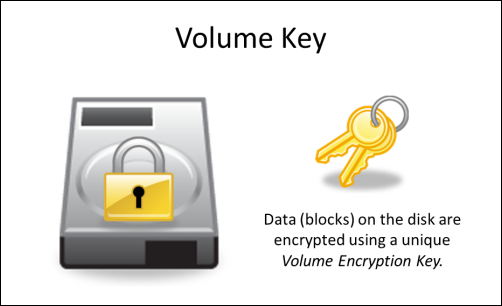

In my discussion and demo at the IT-Discuss Live – Security event in May, I used a short slide deck to describe—in broad terms—how PGP Whole Disk Encryption works. This laid the foundation for working through some common-ish support scenarios.

ITDL-PGPWDE-How_it_works

Having received several requests for a copy of the slides, here they are, in both PowerPoint (.pptx) and PDF formats.
